All-on-X Full-Arch Set — Gingival Characterization

Case Overview

This full-arch All-on-X case involved simultaneous upper and lower restorations for a patient referred by an oral surgery practice. The dual-arch scope raised the stakes: both prosthetics had to harmonize in tooth shade, anatomy, and gingival tissue appearance while being fabricated to precise implant positions. This All-on-X dental lab case demonstrates the advantage of having both arches crafted by the same technician from start to finish — no hand-offs, no inconsistencies.

Digital Design & Framework Planning

The case began with STL scan data and a collaborative treatment plan from the referring surgeon. Implant positions, screw channel access, and occlusal scheme were mapped in Exocad before framework design began. Zirconia frameworks for both arches were designed for optimal load distribution across the implant fixtures, with screw access channels positioned for clinical convenience without compromising structural integrity.

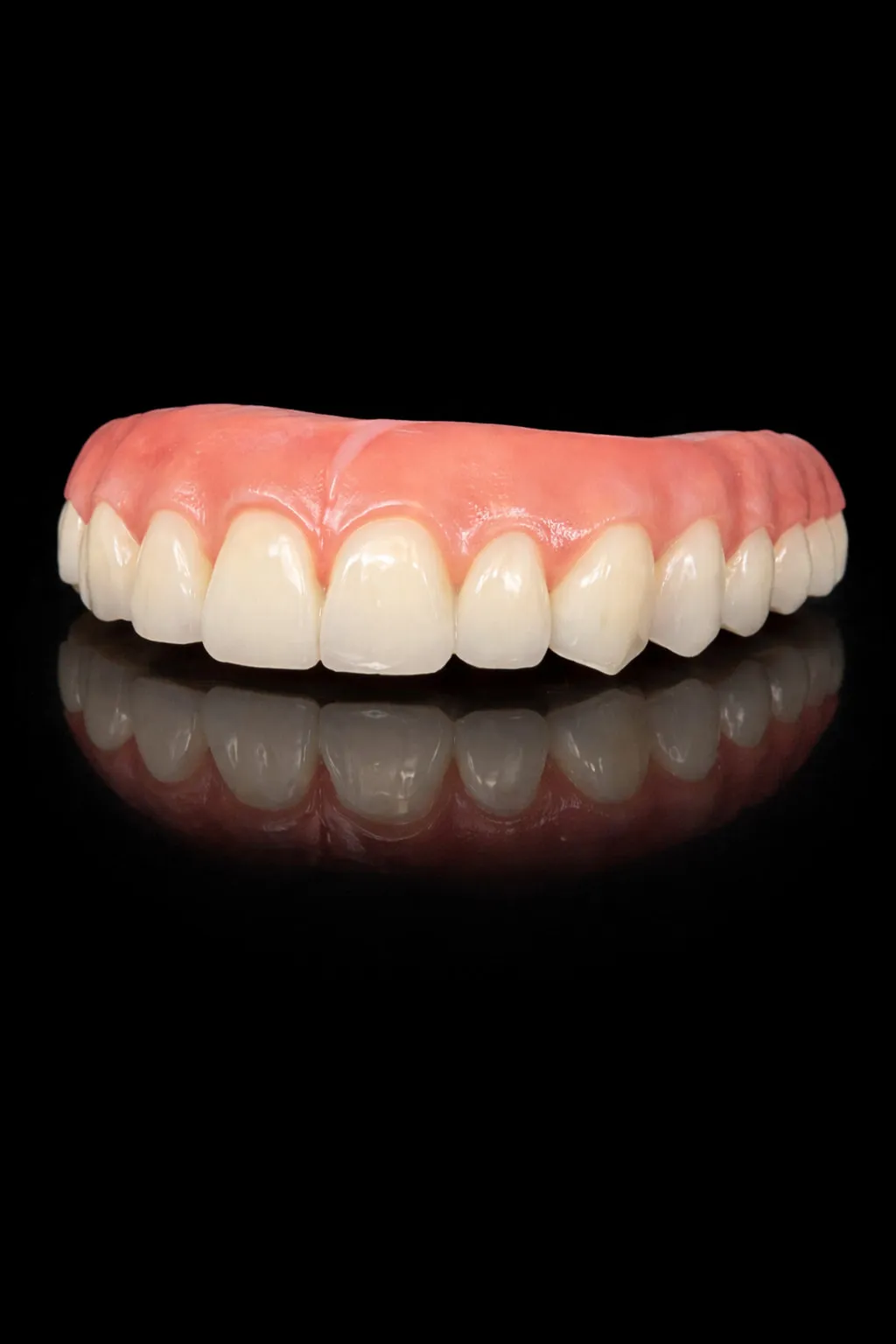

Gingival Characterization

The gingival tissue work on this case went well beyond a flat pink acrylic base. Custom tissue-tone staining was layered to simulate natural soft tissue variation — stippling texture, subtle vascular undertones, and blending zones where ceramic tooth anatomy meets the tissue base. The goal was prosthetics that look biological, not manufactured, even under close clinical inspection.

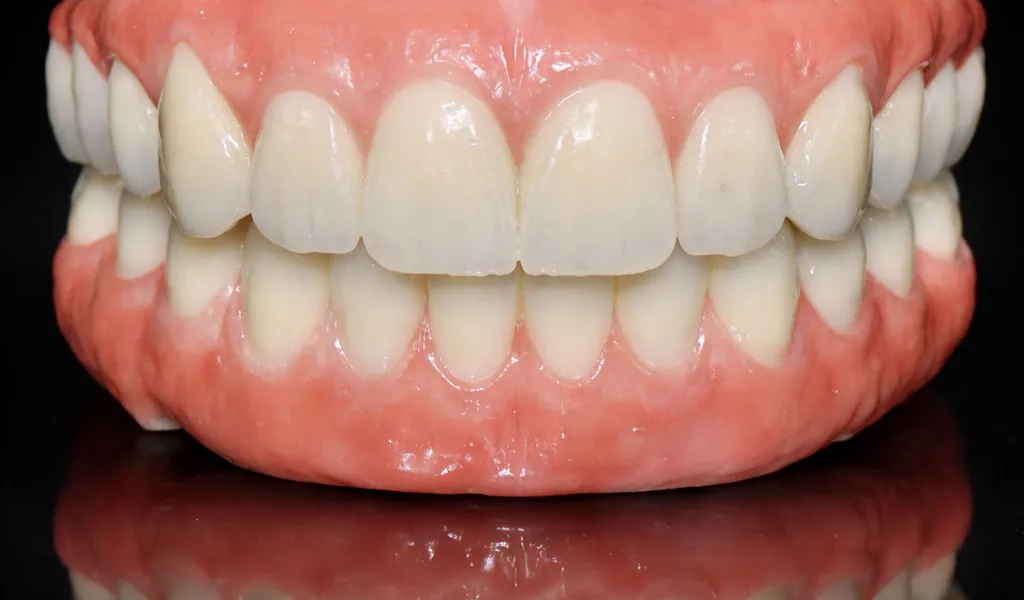

Upper & Lower Arch Coordination

Developing both arches together ensured bite harmony and visual consistency that’s nearly impossible to achieve when upper and lower are fabricated separately or by different technicians. Tooth shade was matched across arches, gingival tones were coordinated to create a unified appearance, and occlusal contacts were refined with both prosthetics articulated together. The single-technician approach was critical here — every adjustment to one arch was immediately evaluated against the other.

Result

The completed upper and lower prosthetics were delivered with precise implant fit, balanced occlusion, and gingival characterization that impressed the clinical team at try-in. The coordinated approach eliminated the common problem of mismatched arches, delivering a result that reads as a natural, unified dentition rather than two separate prosthetic pieces.
